4. Blocks Coding with Web App
Screen items
Screen items

This documentation explains how to scroll elements into view, identify parent elements, clear and delete values in screen items, and add actions to screen items.

Scrolling the element Into the Visible Area

Screen Item scroll into view

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_scrollIntoView\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">screenItem</field></block></value></block></xml>"}

This block is used to scroll the specified layout into the visible area.

Parameters: Screen Item
Output: N/A
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable><variable>scrollButton</variable><variable>secondChildLayout</variable><variable>firstChildLayout</variable><variable>screenItem</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"Styling_setFlexShorthand\"><field name=\"flexShorthand\">FlexShorthand.Auto</field><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><next><block type=\"variables_set\"><field name=\"VAR\">scrollButton</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Scroll</field></shadow></value></block></value><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">scrollButton</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_scrollIntoView\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">secondChildLayout</field></block></value></block></statement><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">scrollButton</field></block></value><next><block type=\"variables_set\"><field name=\"VAR\">firstChildLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">firstChildLayout</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">1000</field></shadow></value></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">firstChildLayout</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">secondChildLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">firstChildLayout</field></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">secondChildLayout</field></block></value><value name=\"height\"><block type=\"CssValues_createLengthPercentage\"><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">100</field></shadow></value></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">secondChildLayout</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">secondChildLayout</field></block></value></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The original output:

Screen item scroll into view - Output 1

After clicking “Scroll” button:

Screen item - scroll into view - Output 2

Getting Parent Elements

Screen Item get parent screen item

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_getParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">screenItem</field></block></value></block></xml>"}

This block uses to get the parent screen item.

Parameters: Screen Item
Output: Screen Item
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable><variable>removeChildBtn</variable><variable>removeParentBtn</variable><variable>parent</variable><variable>child</variable><variable>screenItem</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">removeChildBtn</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove Child</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">removeParentBtn</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove Parent</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">parent</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">child</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"Styling_setFlexShorthand\"><field name=\"flexShorthand\">FlexShorthand.Auto</field><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">70</field></shadow></value></block></value><next><block type=\"Styling_setWidth\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"width\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">500</field></shadow></value></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">40</field></shadow></value></block></value><next><block type=\"Styling_setWidth\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><value name=\"width\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">300</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">removeParentBtn</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value></block></statement><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">removeParentBtn</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"ScreenItem_ScreenItem_getParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value></block></value></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

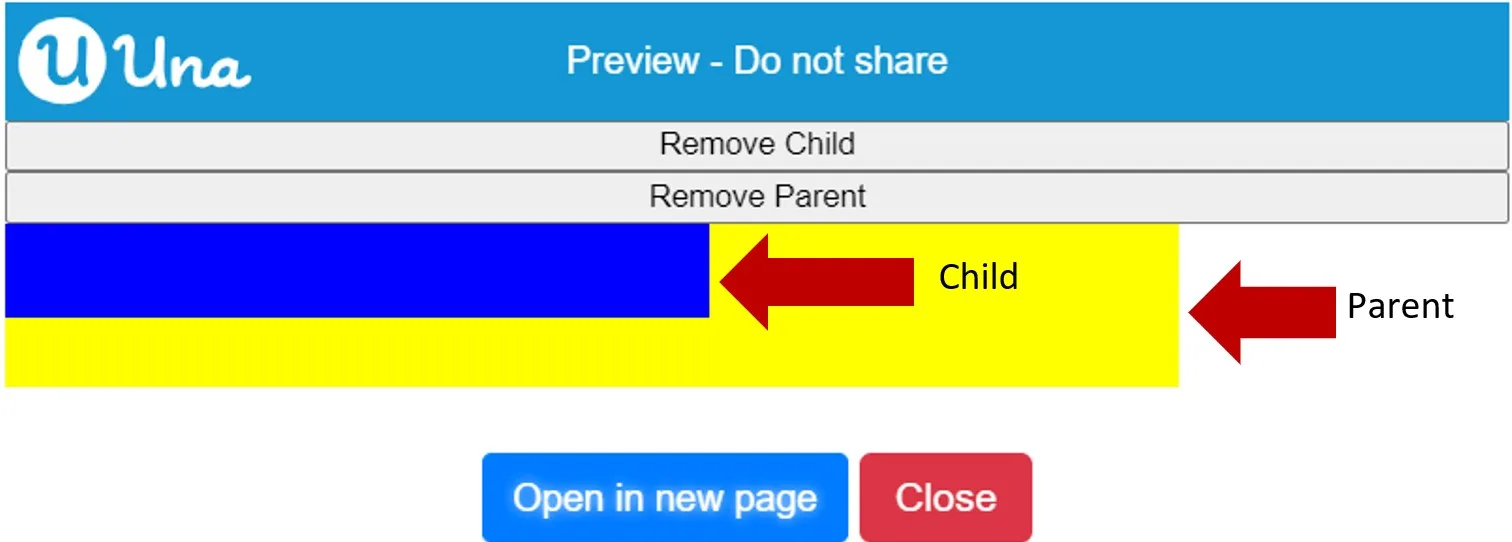

Screen item get parent screen item - Output 1

When clicks “Remove Child” button, the child (blue box) will be removed.

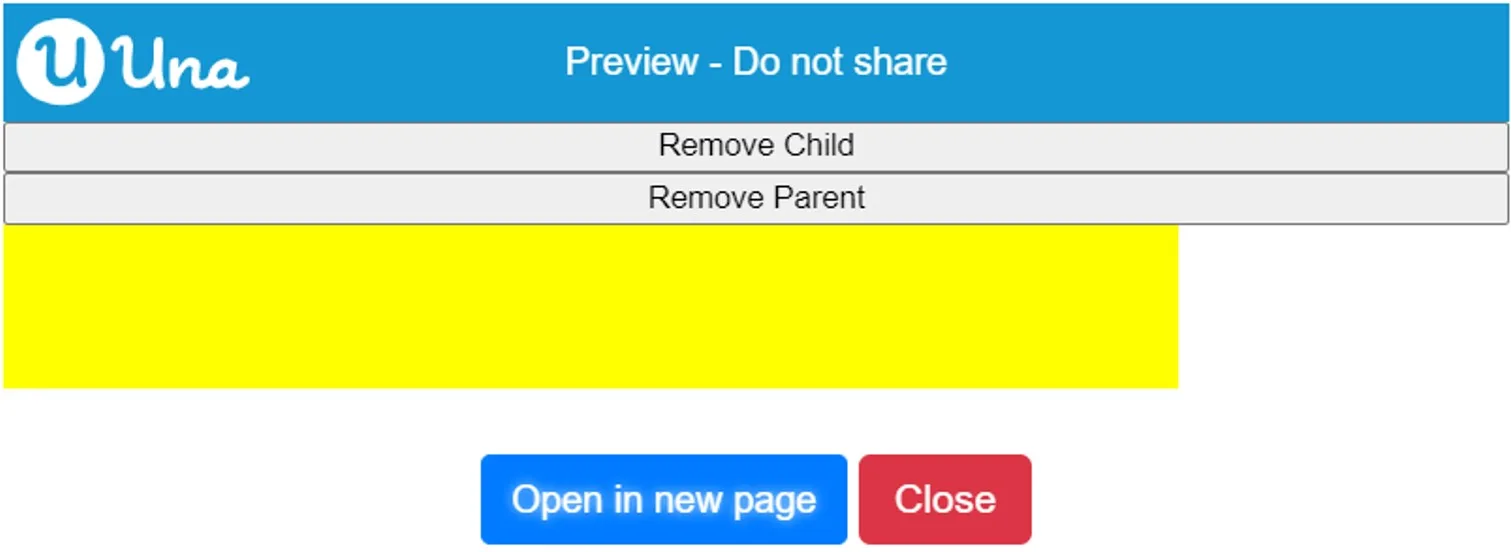

Screen item get parent screen item - Output 2

When clicks “Remove Parent” button, the parent (yellow box) and the child (blue box) which within the parent will be removed.

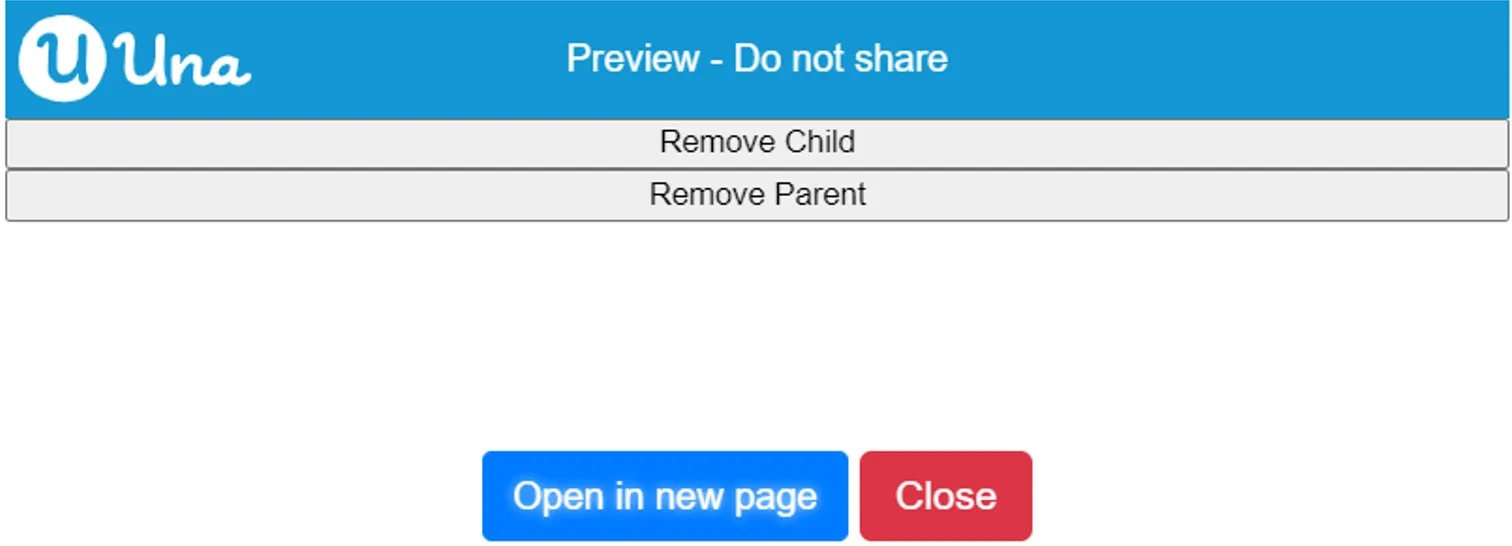

Screen item get parent screen item - Output 3

Finding Parent Screen Item

Screen Item has parent screen item

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_hasParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">screenItem</field></block></value></block></xml>"}

This block is used for checking the variable has parent screen item or not.

Parameters: Screen Item
Output: Boolean (True/False)
Sample code:

Here is using one if condition to remove the screen item.

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"controls_if\"><value name=\"IF0\"><shadow type=\"logic_boolean\"><field name=\"BOOL\">TRUE</field></shadow><block type=\"ScreenItem_ScreenItem_hasParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value></block></value><statement name=\"DO0\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value></block></statement></block></xml>"}
{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable><variable>removeParentBtn</variable><variable>removeChildBtn</variable><variable>parent</variable><variable>child</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">removeParentBtn</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove Parent</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">removeChildBtn</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove Child</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">parent</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">child</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"Styling_setFlexShorthand\"><field name=\"flexShorthand\">FlexShorthand.Auto</field><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">148</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">211</field></shadow></value></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">70</field></shadow></value></block></value><next><block type=\"Styling_setWidth\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"width\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">500</field></shadow></value></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">165</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">40</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">removeParentBtn</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">removeParentBtn</field></block></value><statement name=\"HANDLER\"><block type=\"controls_if\"><value name=\"IF0\"><shadow type=\"logic_boolean\"><field name=\"BOOL\">TRUE</field></shadow><block type=\"ScreenItem_ScreenItem_hasParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value></block></value><statement name=\"DO0\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">parent</field></block></value></block></statement></block></statement><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><statement name=\"HANDLER\"><block type=\"controls_if\"><value name=\"IF0\"><shadow type=\"logic_boolean\"><field name=\"BOOL\">TRUE</field></shadow><block type=\"ScreenItem_ScreenItem_hasParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value></block></value><statement name=\"DO0\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">child</field></block></value></block></statement></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The original output:

Screen Item has parent screen item - Output 1

When clicks “Remove Child” button, the child (orange box) will be removed.

Screen Item has parent screen item - Output 2

When clicks “Remove Parent” button, the parent (purple box) and the child (orange box) which within the parent will be removed.

Screen Item has parent screen item - Output 3

Taking Off All Values in Screen Item

Remove Screen Item

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">screenItem</field></block></value></block></xml>"}

This block is used to remove all the value in the screen.

Parameters: Screen Item
Output: N/A
Sample code:

Here will remove all the value in Screen Item after clicks the button.

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">button</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></statement></block></xml>"}
{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable><variable>button</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">button</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove Main Layout</field></shadow></value></block></value><next><block type=\"Styling_setFlexShorthand\"><field name=\"flexShorthand\">FlexShorthand.Auto</field><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">165</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value></block></value><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">button</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_remove\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></statement><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">button</field></block></value></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The original output:

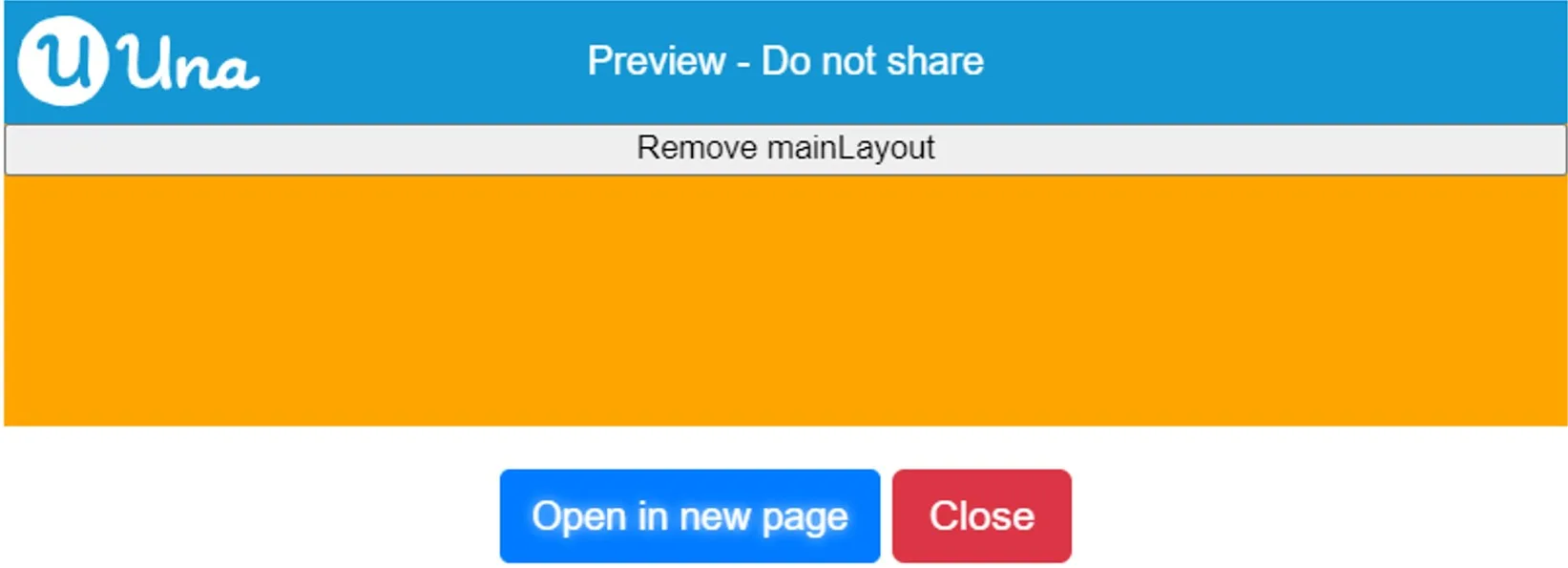

Remove Screen Item - Output 1

When clicks “Remove Main Layout” button, the main layout (orange area) will be removed.

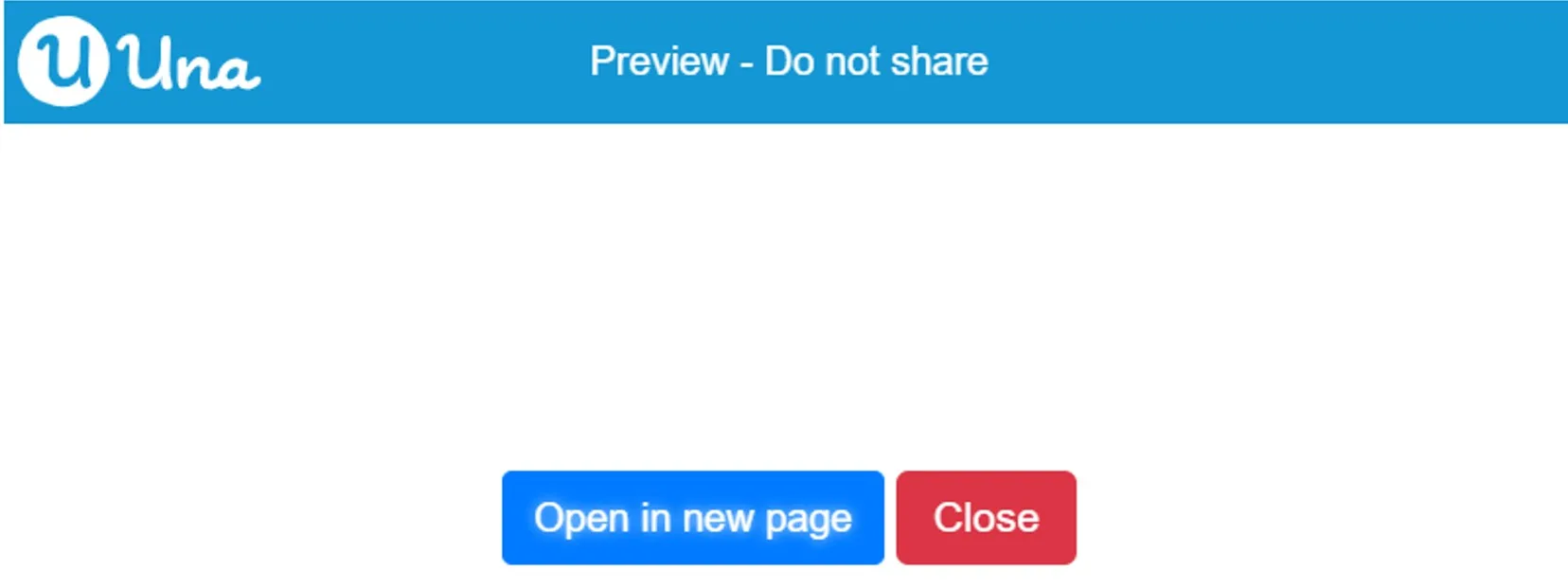

Remove Screen Item - Output 2

Deleting Values in Screen Item

Clear Screen Item

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_getParent\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">screenItem</field></block></value></block></xml>"}

This block is used to clear all the value in the related layout.

Parameters: Screen Item
Output: N/A
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable><variable>removeChildBtn</variable><variable>childLayout</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"Styling_setFlexShorthand\"><field name=\"flexShorthand\">FlexShorthand.Auto</field><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">218</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">185</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">removeChildBtn</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Control_createButton\"><value name=\"content\"><shadow type=\"text\"><field name=\"TEXT\">Remove content in child layout</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><next><block type=\"variables_set\"><field name=\"VAR\">childLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"Styling_setBackgroundColor\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">childLayout</field></block></value><value name=\"color\"><block type=\"CssValues_createColor\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"r\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">0</field></shadow></value><value name=\"g\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">255</field></shadow></value><value name=\"b\"><shadow type=\"math_number_minmax\"><mutation min=\"0\" max=\"255\" label=\"Number\" precision=\"0\"/><field name=\"SLIDER\">191</field></shadow></value></block></value><next><block type=\"Styling_setHeight\"><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">childLayout</field></block></value><value name=\"height\"><block type=\"CssValues_createLength\"><field name=\"unit\">CssLengthUnit.PX</field><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">40</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">childLayout</field></block></value><value name=\"item\"><block type=\"Control_createTextBlock\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"1\" _input_init=\"true\"></mutation><value name=\"text\"><shadow type=\"text\"><field name=\"TEXT\">Text inside the child layout.</field></shadow></value></block></value><next><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"variables_get\"><field name=\"VAR\">childLayout</field></block></value><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">removeChildBtn</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_clear\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">childLayout</field></block></value></block></statement></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The original output:

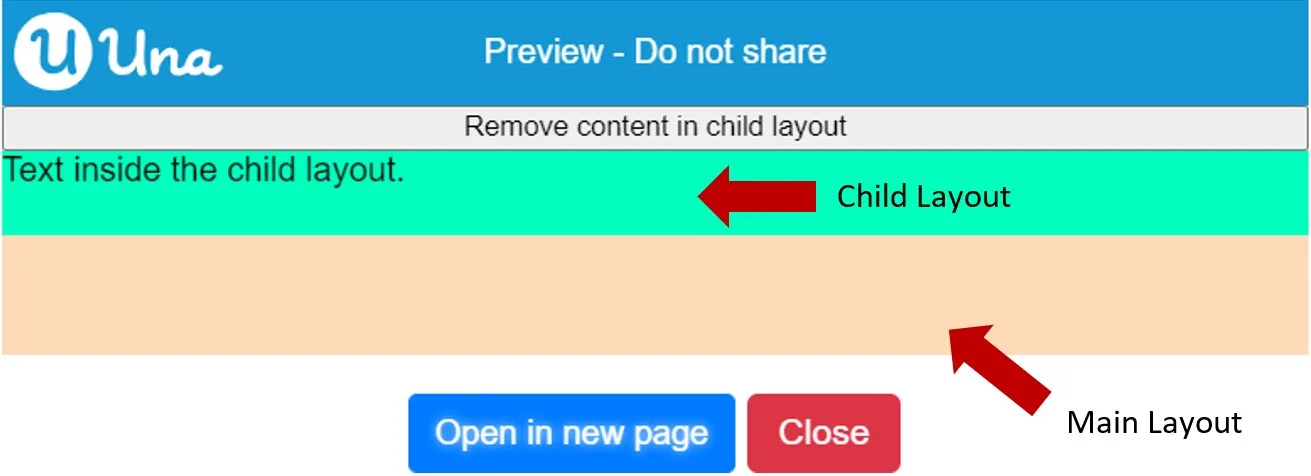

Clear Screen Item - Output 1Clear Screen Item - Output 1

When clicks “Remove content in child layout” button, the text will be removed.

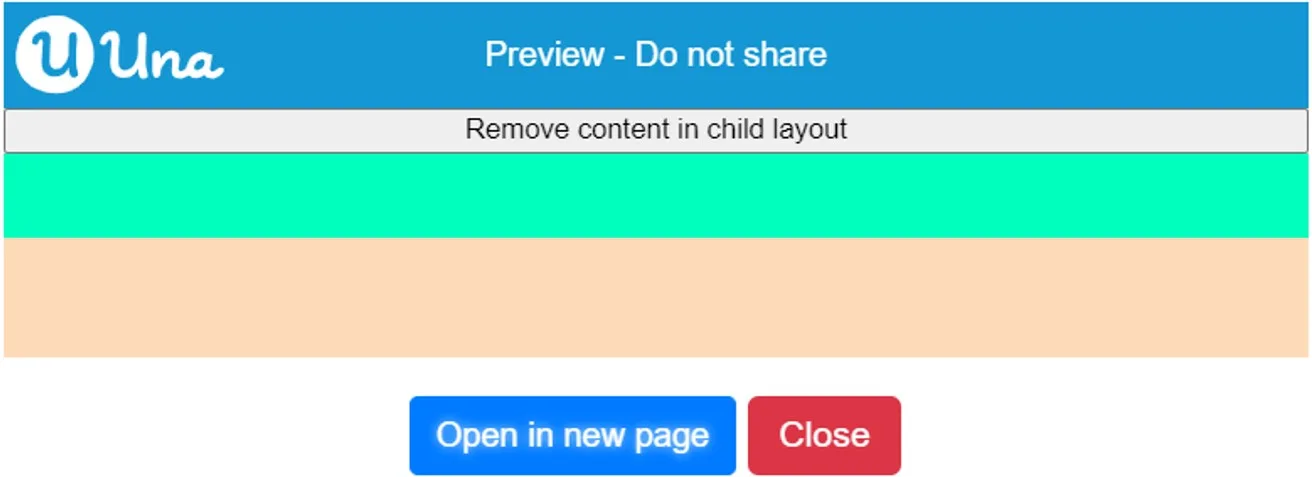

Clear Screen Item - Output 2

Adding some Actions with Screen Item

Control click

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><block type=\"ScreenItem_ScreenItem_click\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></xml>"}

This block is used for setting the specific alignment for the variable or layout.

Parameters: Screen Item
Output: N/A
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>mainLayout</variable><variable>mainScreen</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">mainLayout</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"ScreenItem_createLayout\"/></value><next><block type=\"variables_set\"><field name=\"VAR\">mainScreen</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Screen_create\"><value name=\"label\"><shadow type=\"text\"><field name=\"TEXT\">Main</field></shadow></value><value name=\"layout\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></value><next><block type=\"Task_runAfter\"><value name=\"ms\"><shadow type=\"math_number\"><field name=\"NUM\">5000</field></shadow></value><value name=\"abortSignal\"><block type=\"Task_createAbortControl\"/></value><statement name=\"HANDLER\"><block type=\"ScreenItem_ScreenItem_click\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value></block></statement><next><block type=\"ScreenItem_ScreenItem_onClick\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><statement name=\"HANDLER\"><block type=\"ScreenItem_Layout_add\"><value name=\"this\"><block type=\"variables_get\"><field name=\"VAR\">mainLayout</field></block></value><value name=\"item\"><block type=\"Control_createTextBlock\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"1\" _input_init=\"true\"></mutation><value name=\"text\"><shadow type=\"text\"><field name=\"TEXT\">It clicked main layout after 5 second.</field></shadow></value></block></value></block></statement></block></next></block></next></block></next></block></statement></block></xml>"}

Before clicking the main layout, the output:

Control click - Output (before clicking)

After clicking the main layout, the output:

Control click - Output (after clicking)
