This documentation details using Teachable Machine for image and pose classification, including model loading, object classification, label display, skeleton drawing, and converting results to JSON.


Loading Custom Image Model from URL

Load image model from internet

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>duration</variable></variables><block type=\"TeachableMachine_loadImageModel\" disabled=\"true\" x=\"-23\" y=\"112\"><value name=\"baseUrl\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\"/></shadow></value></block></xml>"}

This is used to load the image model from the URL.

Parameters: String (URL)
Output: Model Prediction Result (From Teachable Machine Image Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">imageModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadImageModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/tghdF3FXI/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">imagePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_predict\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_ImagePredictionResult_getResults\"><value name=\"imagePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">imagePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

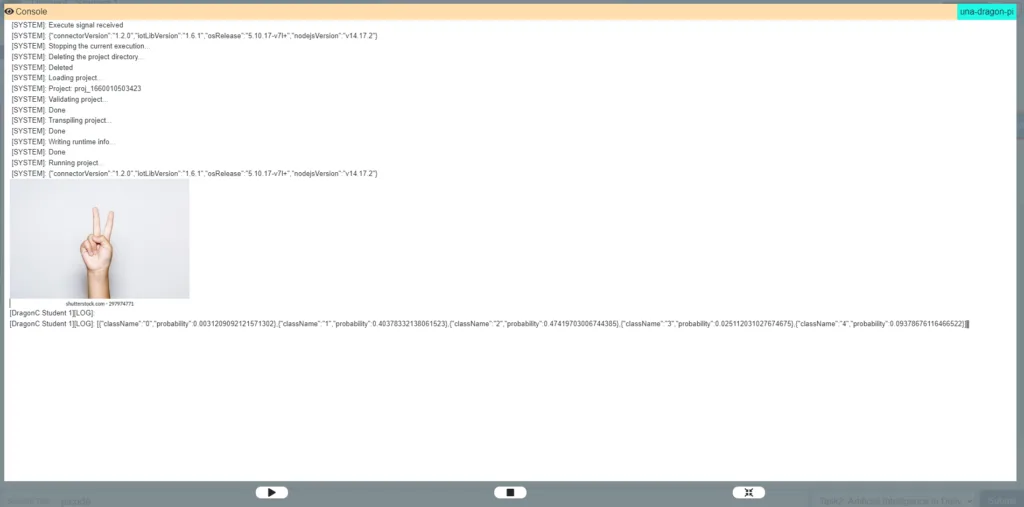

load image model from internet - Output

Classifying Objects on Image

Image Model classify objects on photo and get top … result

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"TeachableMachine_ImageModel_predictTopK\" disabled=\"true\" x=\"-23\" y=\"202\"><value name=\"imageModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">imageModel</field></block></value><value name=\"maxPredictions\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This is used for loading the image model and classify objects on image and give the most appropriate result.

Parameters:

  • AI Model (Teachable Machine Image Model)
  • Image
  • Number (Default: 0)

Output: Model Prediction Result (From Teachable Machine Image Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">imageModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadImageModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/tghdF3FXI/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">imagePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_predictTopK\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><value name=\"maxPredictions\"><shadow type=\"math_number\"><field name=\"NUM\">1</field></shadow></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_ImagePredictionResult_getResults\"><value name=\"imagePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">imagePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

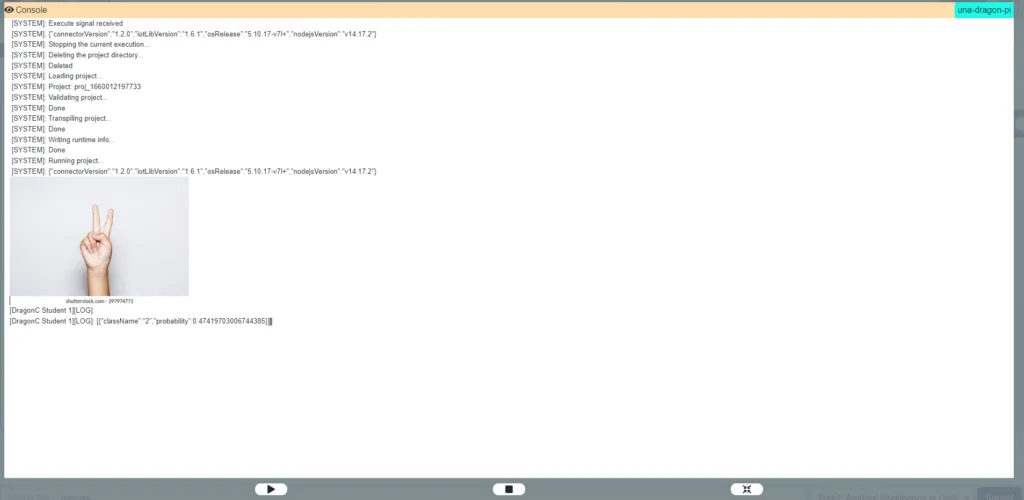

image Model classify objects on image and get top … result - Output

Classifying Objects on Image and Get All Result

Image Model classify objects on photo and get all result

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"TeachableMachine_ImageModel_predict\" disabled=\"true\" x=\"-23\" y=\"247\"><value name=\"imageModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">imageModel</field></block></value></block></xml>"}

This is used for loading the image model and classify objects on image and get all result.

Parameters:

  • AI Model (Teachable Machine Image Model)
  • Image
  • Number (Default: 0)

Output: Model Prediction Result (From Teachable Machine Image Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"20\" y=\"20\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">imageModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadImageModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/tghdF3FXI/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">imagePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_predict\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_ImagePredictionResult_getResults\"><value name=\"imagePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">imagePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

Image Model classify objects on photo and get all result - Output

Showing the Class Labels in Image Model

Image Model get class labels

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"TeachableMachine_ImageModel_getClassLabels\" disabled=\"true\" x=\"23\" y=\"293\"><value name=\"imageModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">imageModel</field></block></value></block></xml>"}

This is used for getting class labels from image model.

Parameters: AI Model (Teachable Machine Image Model)
Output: Array
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable><variable>labels</variable><variable>index</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">imageModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadImageModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/tghdF3FXI/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">imagePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_predict\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_getClassLabels\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_ImagePredictionResult_getResults\"><value name=\"imagePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">imagePredictionResult</field></block></value></block></value></block></value><next><block type=\"pxt_controls_for\"><value name=\"VAR\"><shadow type=\"variables_get_reporter\"><field name=\"VAR\">index</field></shadow></value><value name=\"TO\"><shadow type=\"math_whole_number\"><field name=\"NUM\">0</field></shadow><block type=\"math_arithmetic\"><field name=\"OP\">MINUS</field><value name=\"A\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"lists_length\"><value name=\"VALUE\"><block type=\"variables_get\"><field name=\"VAR\">labels</field></block></value></block></value><value name=\"B\"><shadow type=\"math_number\"><field name=\"NUM\">1</field></shadow></value></block></value><statement name=\"DO\"><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"lists_index_get\"><value name=\"LIST\"><block type=\"variables_get\"><field name=\"VAR\">labels</field></block></value><value name=\"INDEX\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"variables_get\"><field name=\"VAR\">index</field></block></value></block></value></block></statement></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

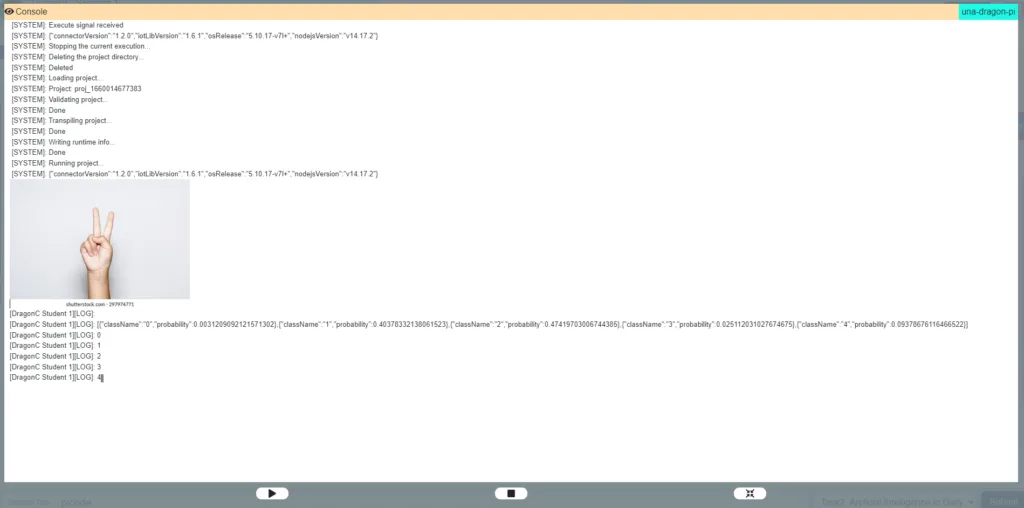

image model get class labels - Output

Showing the Total Amount of Classes with Image Model

Image Model get total number of classes

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>imageModel</variable></variables><block type=\"TeachableMachine_ImageModel_getTotalClasses\" disabled=\"true\" x=\"-22\" y=\"-22\"><value name=\"imageModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">imageModel</field></block></value></block></xml>"}

This is used to get the full number of classes.

Parameters: AI Model (Teachable Machine Image Model)
Output: Number
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">imageModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadImageModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/tghdF3FXI/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">imagePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_ImageModel_predict\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://image.shutterstock.com/image-photo/boy-raising-two-fingers-on-260nw-297974771.jpg</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_ImagePredictionResult_getResults\"><value name=\"imagePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">imagePredictionResult</field></block></value></block></value></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"TeachableMachine_ImageModel_getTotalClasses\"><value name=\"imageModel\"><block type=\"variables_get\"><field name=\"VAR\">imageModel</field></block></value></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

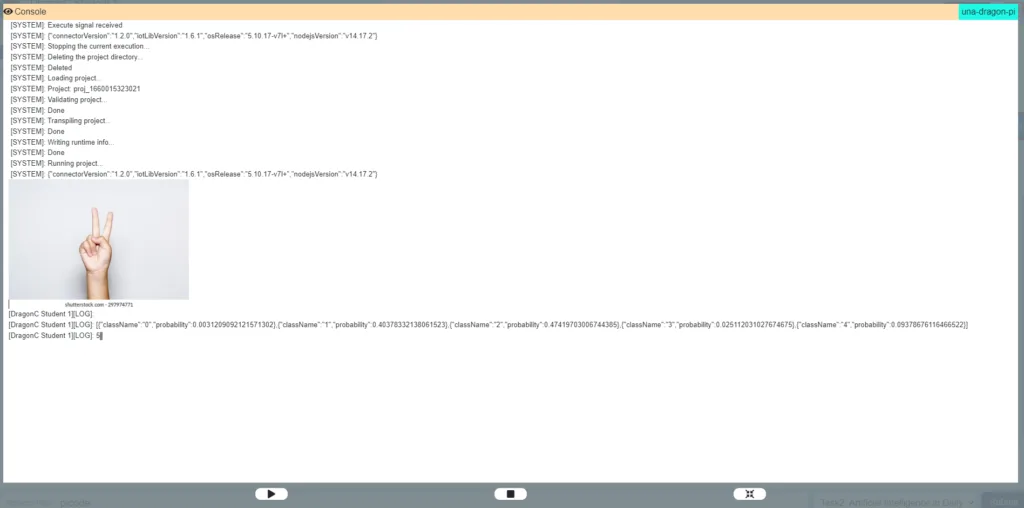

image Model get total number of classes - Output

Pose

Loading Custom Pose Model from URL

Load pose model from internet

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>imageModel</variable><variable>imagePredictionResult</variable></variables><block type=\"TeachableMachine_loadPoseModel\" disabled=\"true\" x=\"-22\" y=\"158\"><value name=\"baseUrl\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\"/></shadow></value></block></xml>"}

This is used to load the pose model from the internet with the URL.

Parameters: String (URL)
Output: Model Prediction Result (From Teachable Machine Pose Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

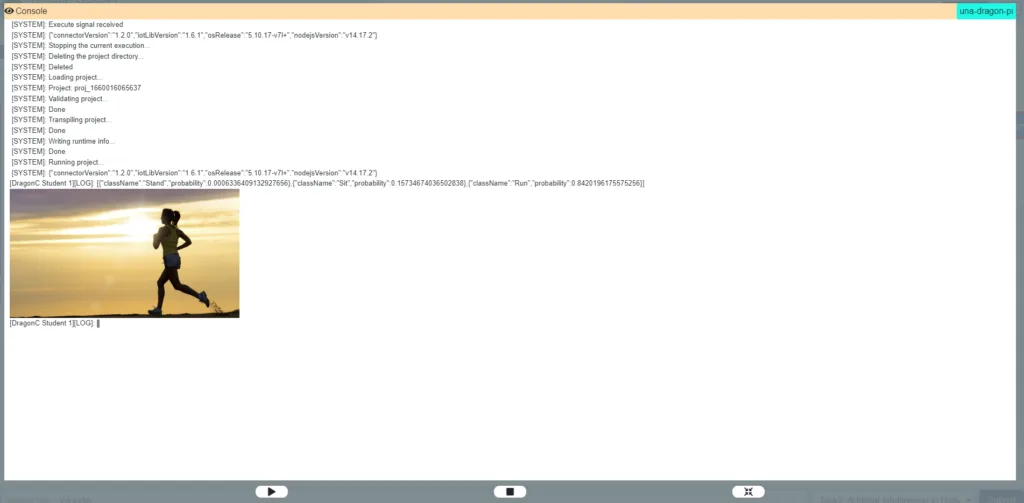

load pose model from internet - Output

Classifying Pose on Image

Pose Model classify pose on photo and get top … result

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>imageModel</variable></variables><block type=\"TeachableMachine_PoseModel_predictTopK\" disabled=\"true\" x=\"-22\" y=\"203\"><value name=\"poseModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">poseModel</field></block></value><value name=\"maxPredictions\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This is used for loading the pose model to classify pose on image and get the appropriate result.

Parameters:

  • AI Model (Teachable Machine Pose Model)
  • Image
  • Number (Default: 0)

Output: Model Prediction Result (From Teachable Machine Pose Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predictTopK\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><value name=\"maxPredictions\"><shadow type=\"math_number\"><field name=\"NUM\">1</field></shadow></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

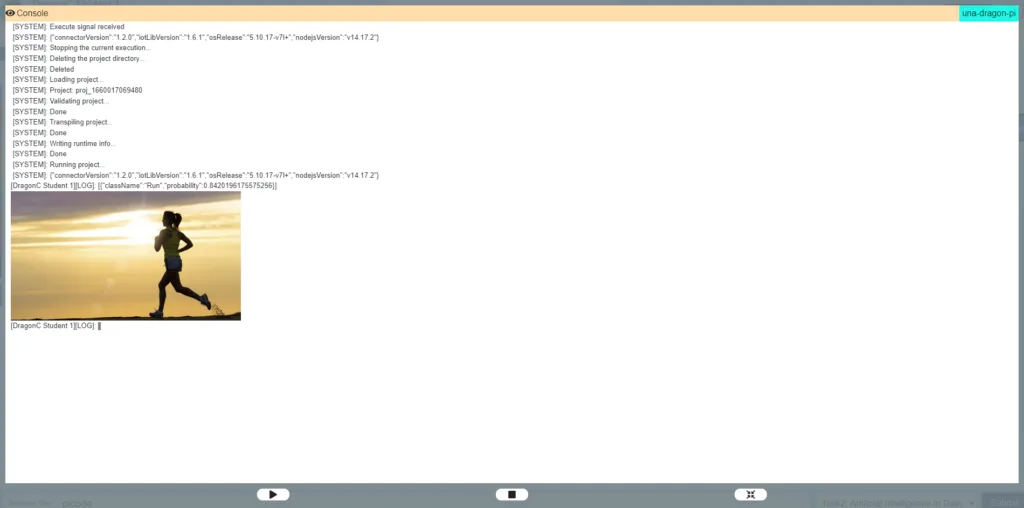

pose model classify pose photo and get top ... result - Output

Classifying Pose on Image and Get All Result

Pose Model classify pose on photo and get all result

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable></variables><block type=\"TeachableMachine_PoseModel_predict\" disabled=\"true\" x=\"-202\" y=\"-67\"><value name=\"poseModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">poseModel</field></block></value></block></xml>"}

This is used for loading the pose model to classify pose on image and get all result.

Parameters:

  • AI Model (Teachable Machine Pose Model)
  • Image
  • Number (Default: 0)

Output: Model Prediction Result (From Teachable Machine Pose Model)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

PoseModel Classify Poses on Photo and Get All Results - Output

Showing the Class Labels in Pose Model

Pose Model get class labels

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable></variables><block type=\"TeachableMachine_PoseModel_getClassLabels\" disabled=\"true\" x=\"-22\" y=\"113\"><value name=\"poseModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">poseModel</field></block></value></block></xml>"}

This is used for getting class labels from pose model.

Parameters: AI Model (Teachable Machine Pose Model)

Output: Array
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable><variable>index</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value><next><block type=\"pxt_controls_for\"><value name=\"VAR\"><shadow type=\"variables_get_reporter\"><field name=\"VAR\">index</field></shadow></value><value name=\"TO\"><shadow type=\"math_whole_number\"><field name=\"NUM\">0</field></shadow><block type=\"math_arithmetic\"><field name=\"OP\">MINUS</field><value name=\"A\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"lists_length\"><value name=\"VALUE\"><block type=\"variables_get\"><field name=\"VAR\">labels</field></block></value></block></value><value name=\"B\"><shadow type=\"math_number\"><field name=\"NUM\">1</field></shadow></value></block></value><statement name=\"DO\"><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"lists_index_get\"><value name=\"LIST\"><block type=\"variables_get\"><field name=\"VAR\">labels</field></block></value><value name=\"INDEX\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"variables_get\"><field name=\"VAR\">index</field></block></value></block></value></block></statement></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

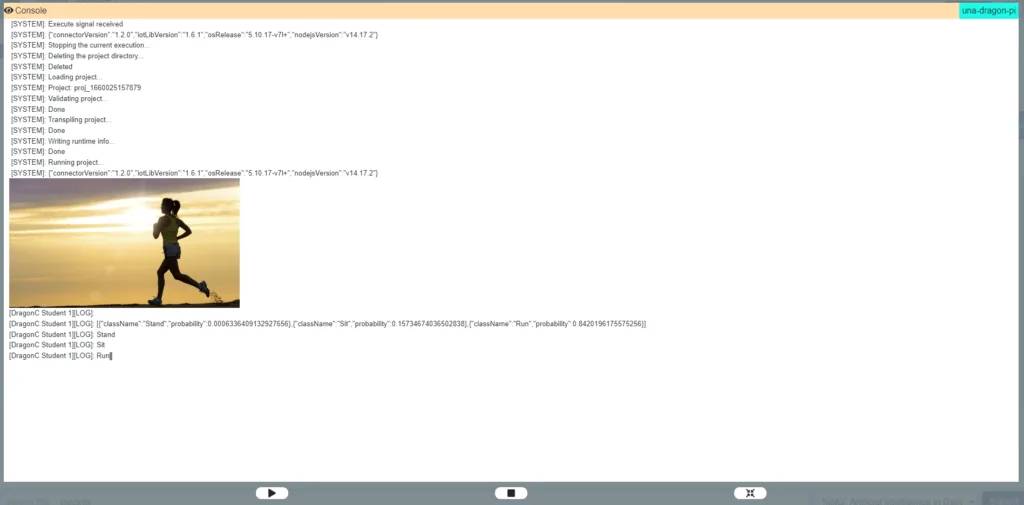

The output:

Pose Model Get Class Labels - Output

Showing the Total Amount of Classes with Pose Model

Pose Model get total number of classes

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable><variable>index</variable></variables><block type=\"TeachableMachine_PoseModel_getTotalClasses\" disabled=\"true\" x=\"-22\" y=\"202\"><value name=\"poseModel\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">poseModel</field></block></value></block></xml>"}

This is used to get the full number of classes from pose model.

Parameters: AI Model (Teachable Machine Pose Model)

Output: Number
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"TeachableMachine_PoseModel_getTotalClasses\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

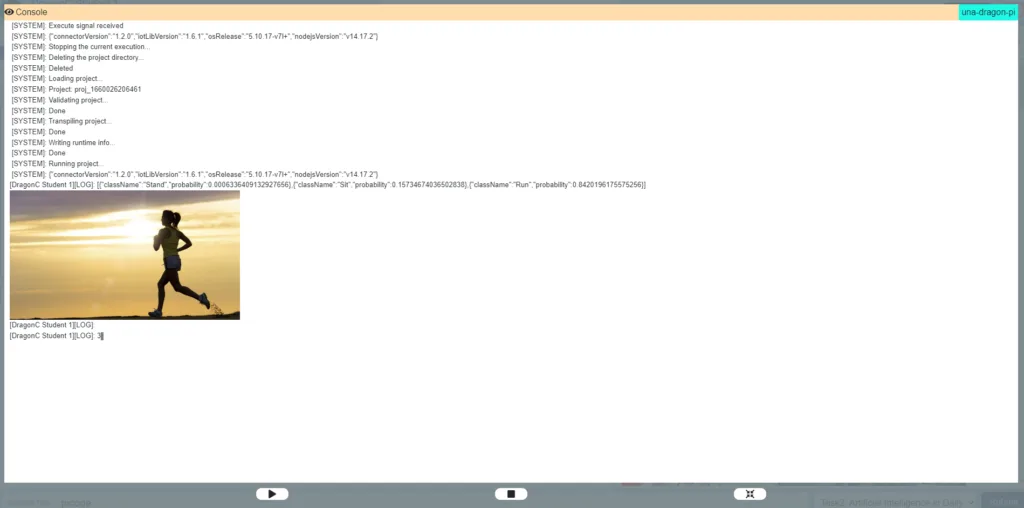

The output:

Pose Model Get Total Number of Classes - Output

Draw All Skeleton and the Key Points

poseDetectionResult draw key points and skeleton with confidence >= 0

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"TeachableMachine_PosePredictionResult_drawKeypointsAndSkeleton\" disabled=\"true\" x=\"-22\" y=\"247\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This block is used for displaying the key points and skeleton line inside the image.

Parameters:

  • AI Model (Teachable Machine Pose Model)
  • Screen Item (Image)

Output: Image
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"TeachableMachine_PosePredictionResult_drawKeypointsAndSkeleton\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

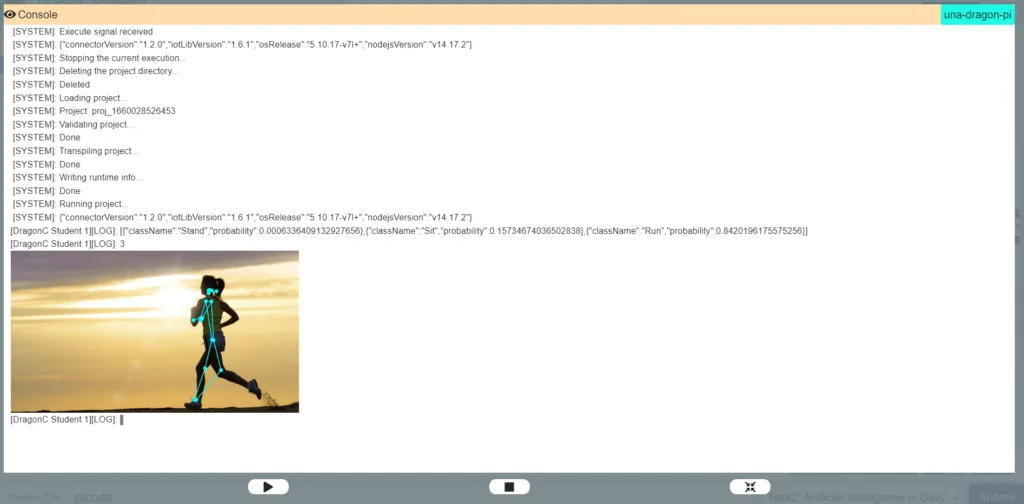

PoseDetectionResult Draw Key Points and Skeleton with Confidence - Output

Draw All Skeleton Inside a Photo

poseDetectionResult draw skeleton with confidence >= 0

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"TeachableMachine_PosePredictionResult_drawSkeleton\" disabled=\"true\" x=\"-113\" y=\"292\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This block is used for displaying the skeleton line inside the image.

Parameters:

  • AI Model (Teachable Machine Pose Model)
  • Screen Item (Image)

Output: Image
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"TeachableMachine_PosePredictionResult_drawSkeleton\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

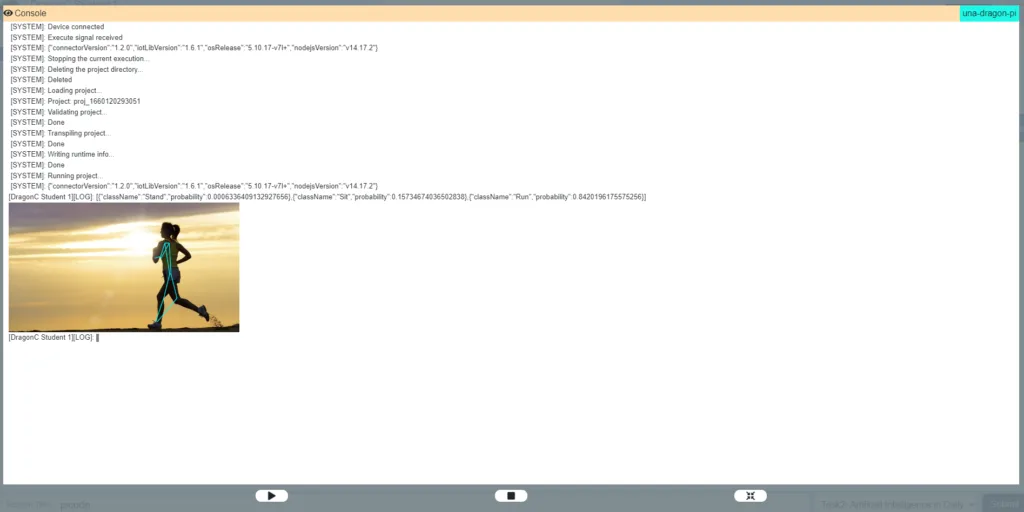

PoseDetectionResult Draw Skeleton with Confidence - Output

Draw All Key Points Inside a Photo

poseDetectionResult draw key points with confidence >= 0

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"TeachableMachine_PosePredictionResult_drawKeypoints\" disabled=\"true\" x=\"-22\" y=\"382\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This block is used for displaying the key points inside the image.

Parameters:

  • AI Model (Teachable Machine Pose Model)
  • Screen Item (Image)

Output: Image
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"TeachableMachine_PosePredictionResult_drawKeypoints\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

PoseDetectionResult Draw Key Points with Confidence - Output

Result

Converting Prediction Result to JsonValue

Prediction Result get results as JsonValue

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"TeachableMachine_PosePredictionResult_getResults\" disabled=\"true\" x=\"-22\" y=\"472\"><value name=\"posePredictionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">posePredictionResult</field></block></value></block></xml>"}

This is used to convert the image prediction result to Json Value.

Parameters: AI Model (Teachable Machine Pose Model)

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>poseModel</variable><variable>posePredictionResult</variable><variable>labels</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">poseModel</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_loadPoseModel\"><value name=\"baseUrl\"><shadow type=\"text\"><field name=\"TEXT\">https://teachablemachine.withgoogle.com/models/LL-rF1gZS/</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">posePredictionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_predict\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value><value name=\"photo\"><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://i2.wp.com/runnersfirst.co.uk/wp-content/uploads/2019/01/running-woman.jpg?resize=678%2C381&amp;ssl=1</field></shadow></value></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">labels</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"TeachableMachine_PoseModel_getClassLabels\"><value name=\"poseModel\"><block type=\"variables_get\"><field name=\"VAR\">poseModel</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"TeachableMachine_PosePredictionResult_drawKeypoints\"><mutation xmlns=\"http://www.w3.org/1999/xhtml\" _expanded=\"0\" _input_init=\"false\"></mutation><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value><value name=\"minConfidence\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"TeachableMachine_PosePredictionResult_getResults\"><value name=\"posePredictionResult\"><block type=\"variables_get\"><field name=\"VAR\">posePredictionResult</field></block></value></block></value></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

Prediction Result Get Results as JsonValue - Output
