5. Blocks Coding with Raspberry Pi >

UnaAI

This documentation details UnaAI functionalities, including displaying AI results, object and face detection, face comparison, and identifying people based on attributes like hair color, glasses, gender, and emotions.

Common

Display the AI Result

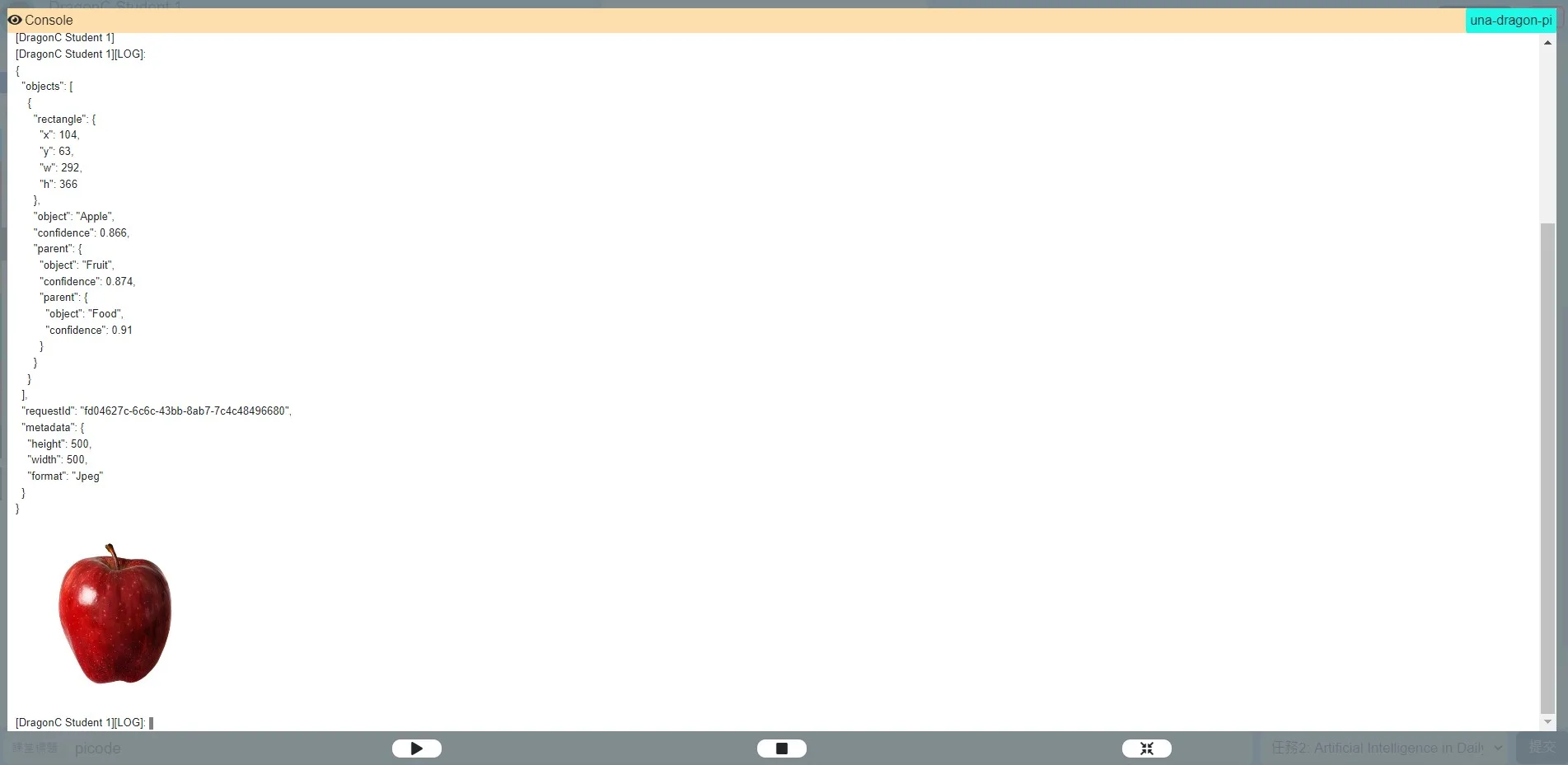

Print AI Result

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>result</variable></variables><block type=\"UnaAI_AiResult_showContent\" disabled=\"true\" x=\"113\" y=\"202\"><value name=\"result\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">result</field></block></value></block></xml>"}

This is used to show the AI result after the AI loaded the image or photo.

Parameters: AI Result (from Azure)

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI1/2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">visionAnalysisResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectObjects\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_AiResult_showContent\"><value name=\"result\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

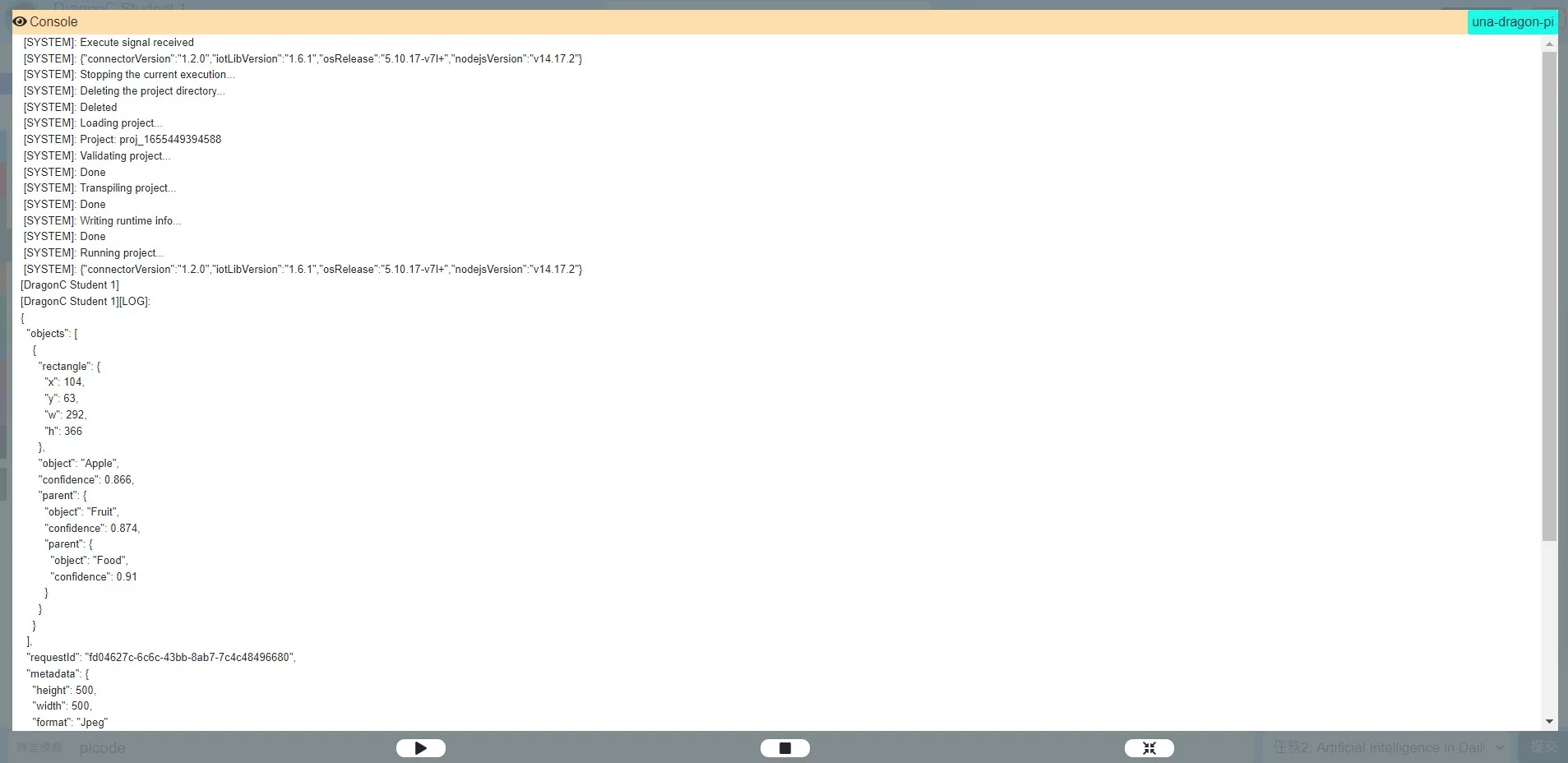

The output:

Receiving AI Result and Changing It to JsonValue

Get AI result as JsonValue

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable><variable>result</variable></variables><block type=\"UnaAI_AiResult_getContentAsJsonValue\" disabled=\"true\" x=\"113\" y=\"248\"><value name=\"result\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">result</field></block></value></block></xml>"}

This is used to get the AI result after AI get the object or face in photo and convert it to JSON value.

Parameters: AI Result (from Azure)

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable><variable>JsonValue</variable><variable>result</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI1/2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">visionAnalysisResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectObjects\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">JsonValue</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_AiResult_getContentAsJsonValue\"><value name=\"result\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value></block></value><next><block type=\"basic_consoleLogText\"><value name=\"text\"><block type=\"Json_JsonValue_stringify\"><value name=\"jsonValue\"><block type=\"variables_get\"><field name=\"VAR\">JsonValue</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

Object Detection

Object Detection Inside a Photo

Detect Objects in Photo

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable><variable>JsonValue</variable><variable>result</variable></variables><block type=\"UnaAI_detectObjects\" disabled=\"true\" x=\"248\" y=\"383\"/></xml>"}

This is used to detect the object inside the image or photo.

Parameters: Photo

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI1/2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">visionAnalysisResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectObjects\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_AiResult_showContent\"><value name=\"result\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value><next><block type=\"UnaAI_VisionAnalysisResult_markObjects\"><value name=\"visionAnalysisResult\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

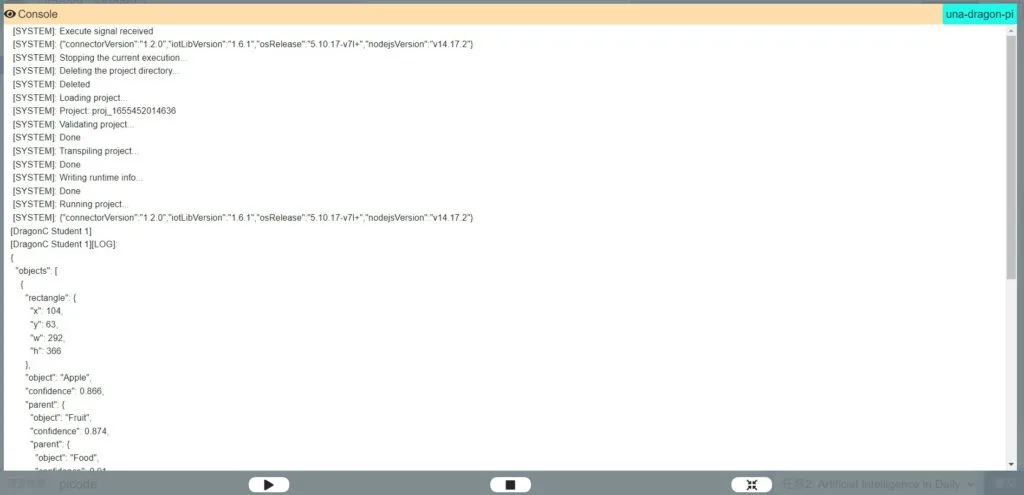

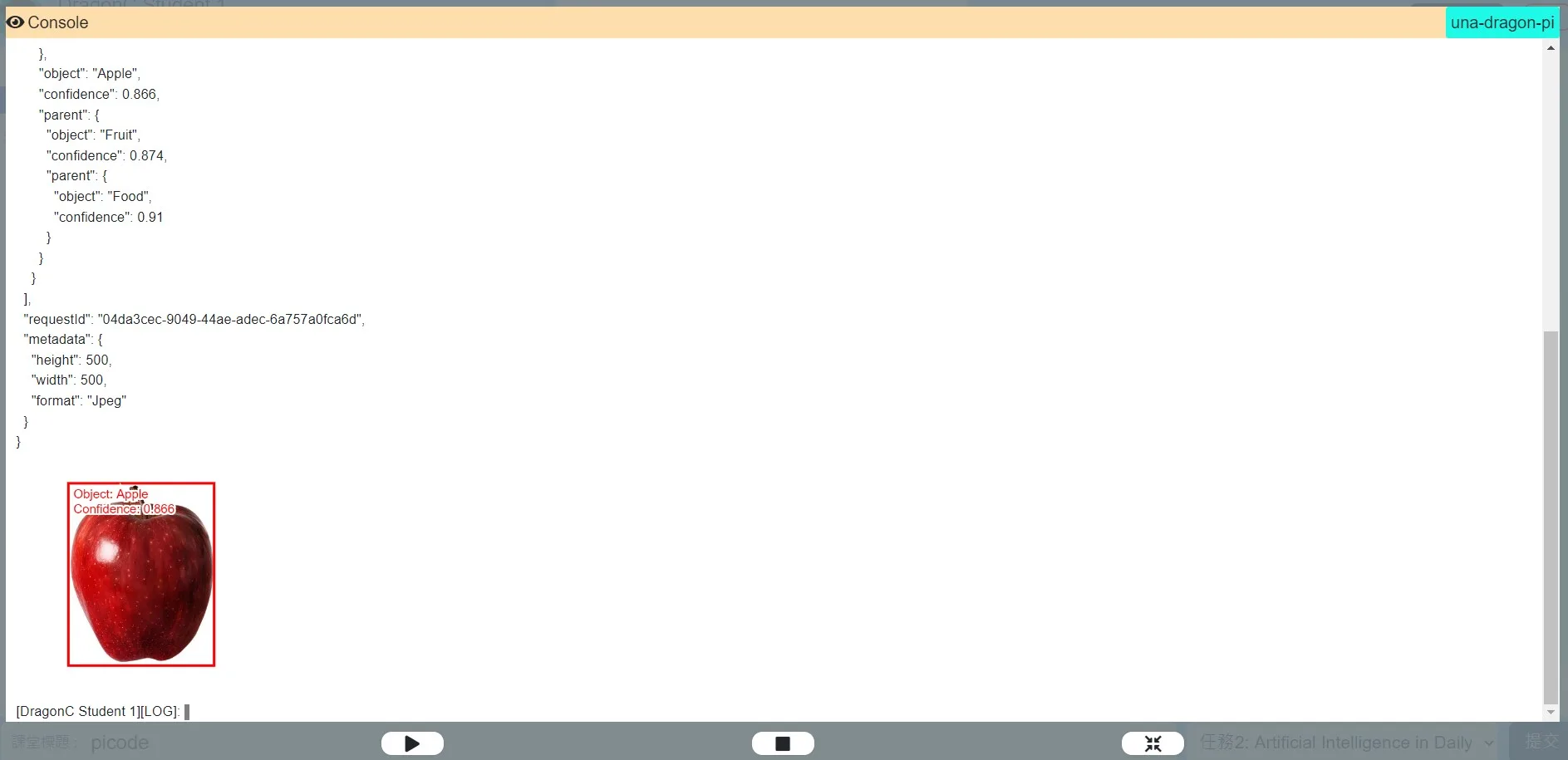

The output:

Checking Object Detection Including Keyword

Vision Analysis Result Contains

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"UnaAI_VisionAnalysisResult_hasObject\" disabled=\"true\" x=\"112\" y=\"337\"><value name=\"visionAnalysisResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">visionAnalysisResult</field></block></value><value name=\"objName\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\"/></shadow></value></block></xml>"}

This is used to check whether the object contains specific terms.

Parameters:

AI Result (Object Detection from Azure)
Display setting: String

Output: Boolean (True/False)
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI1/2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">visionAnalysisResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectObjects\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"controls_if\"><mutation else=\"1\"/><value name=\"IF0\"><shadow type=\"logic_boolean\"><field name=\"BOOL\">TRUE</field></shadow><block type=\"UnaAI_VisionAnalysisResult_hasObject\"><value name=\"visionAnalysisResult\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value><value name=\"objName\"><shadow type=\"text\"><field name=\"TEXT\">Apple</field></shadow></value></block></value><statement name=\"DO0\"><block type=\"basic_consoleLogText\"><value name=\"text\"><shadow type=\"text\"><field name=\"TEXT\">It is an apple.</field></shadow></value></block></statement><statement name=\"ELSE\"><block type=\"basic_consoleLogText\"><value name=\"text\"><shadow type=\"text\"><field name=\"TEXT\">It is not an apple.</field></shadow></value></block></statement></block></next></block></next></block></statement></block></xml>"}

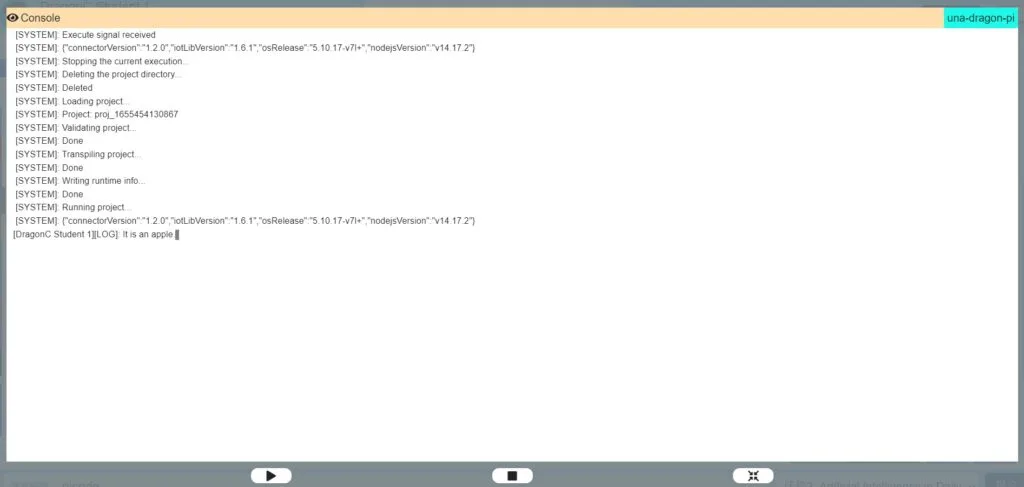

The output:

Putting Object Detection Result Inside Image

Vision Analysis Result mark objects on photo

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"UnaAI_VisionAnalysisResult_hasObject\" disabled=\"true\" x=\"112\" y=\"337\"><value name=\"visionAnalysisResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">visionAnalysisResult</field></block></value><value name=\"objName\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\"/></shadow></value></block></xml>"}

This is used to mark the boundary box inside the photo.

Parameters: AI Result (Object Detection from Azure)

Output: Photo
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">visionAnalysisResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectObjects\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_VisionAnalysisResult_markObjects\"><value name=\"visionAnalysisResult\"><block type=\"variables_get\"><field name=\"VAR\">visionAnalysisResult</field></block></value></block></next></block></next></block></statement></block></xml>"}

The output:

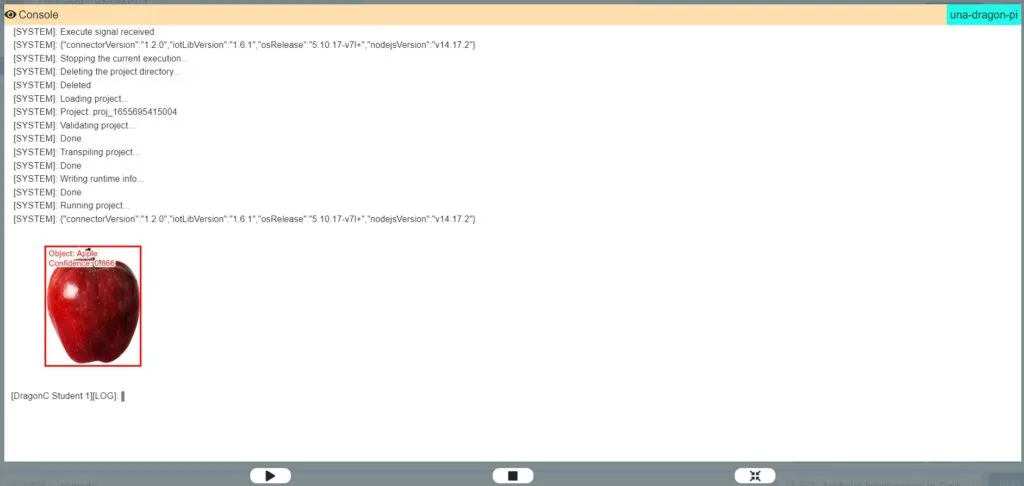

Vision Analysis Result Mark Object on Photo - Output

Face Detection and Verification

Face Comparison Using Similarity Confidence

Verify and have the same face

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>visionAnalysisResult</variable></variables><block type=\"UnaAI_verifyFaces\" disabled=\"true\" x=\"0\" y=\"0\"/></xml>"}

This is used to identify the similarity confidence between two faces.

Parameters: AI Result (Object Detection from Azure)

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo1</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">photo2</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult1</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo1</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult2</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo2</field></block></value></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"variables_get\"><field name=\"VAR\">photo1</field></block></value><next><block type=\"Camera_showPhoto\"><value name=\"photo\"><block type=\"variables_get\"><field name=\"VAR\">photo2</field></block></value><next><block type=\"UnaAI_AiResult_showContent\"><value name=\"result\"><block type=\"UnaAI_verifyFaces\"><value name=\"face1\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult1</field></block></value><value name=\"face2\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult2</field></block></value></block></value></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

Verify and Have the Same Face - Output 1

Verify and Have the Same Face - Output 2

Face Detection Inside a Photo

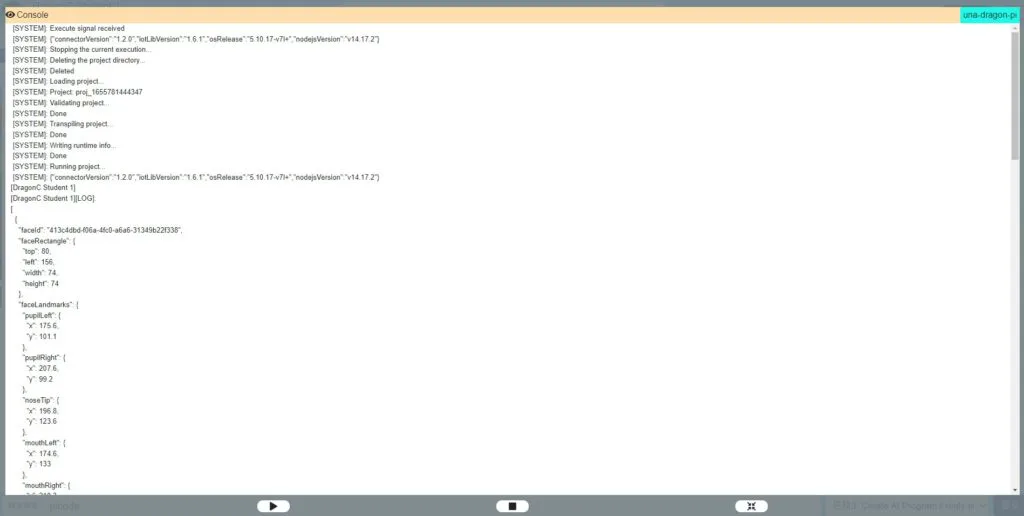

Detect face in photo

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable></variables><block type=\"UnaAI_detectObjects\" disabled=\"true\" x=\"-22\" y=\"202\"/></xml>"}

This is used to detect the face inside the image or photo.

Parameters: Photo

Output: Json Value
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_AiResult_showContent\"><value name=\"result\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></next></block></next></block></statement></block></xml>"}

The output:

Face Comparison Using Similarity Confidence

Face Verification Result get face similarity confidence

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable><variable>faceVerificationResult</variable></variables><block type=\"UnaAI_FaceVerificationResult_getSimilarityConfidence\" disabled=\"true\" x=\"158\" y=\"337\"><value name=\"faceVerificationResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceVerificationResult</field></block></value></block></xml>"}

This is used for getting two faces similarity confidence.

Parameters: AI Result (Face Detection from Azure)

Output: AI Result
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable><variable>faceVerificationResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo1</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">photo2</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man2.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult1</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo1</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult2</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo2</field></block></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceVerificationResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_verifyFaces\"><value name=\"face1\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult1</field></block></value><value name=\"face2\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult2</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult1</field></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult2</field></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceVerificationResult_getSimilarityConfidence\"><value name=\"faceVerificationResult\"><block type=\"variables_get\"><field name=\"VAR\">faceVerificationResult</field></block></value></block></value></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

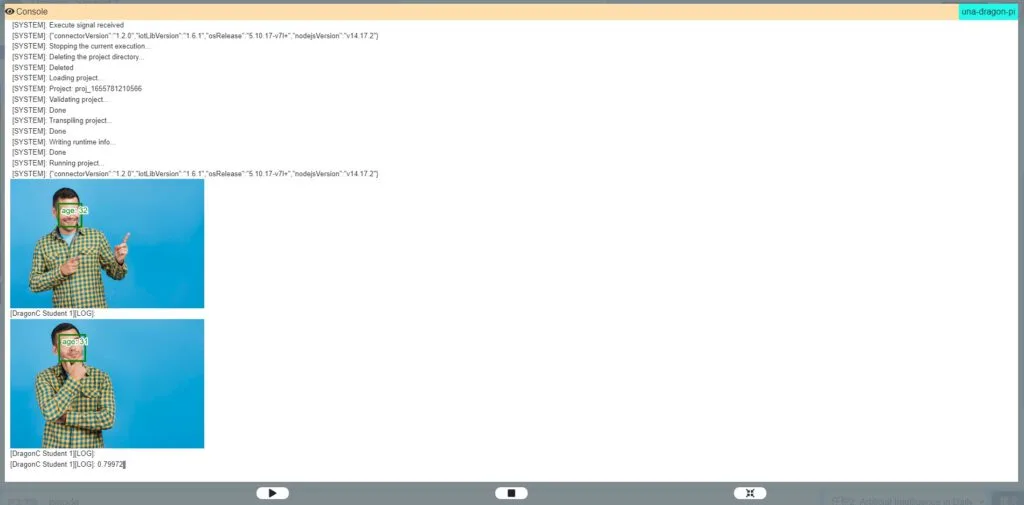

Face Verification Result Get Face Similarity Confidence - Output

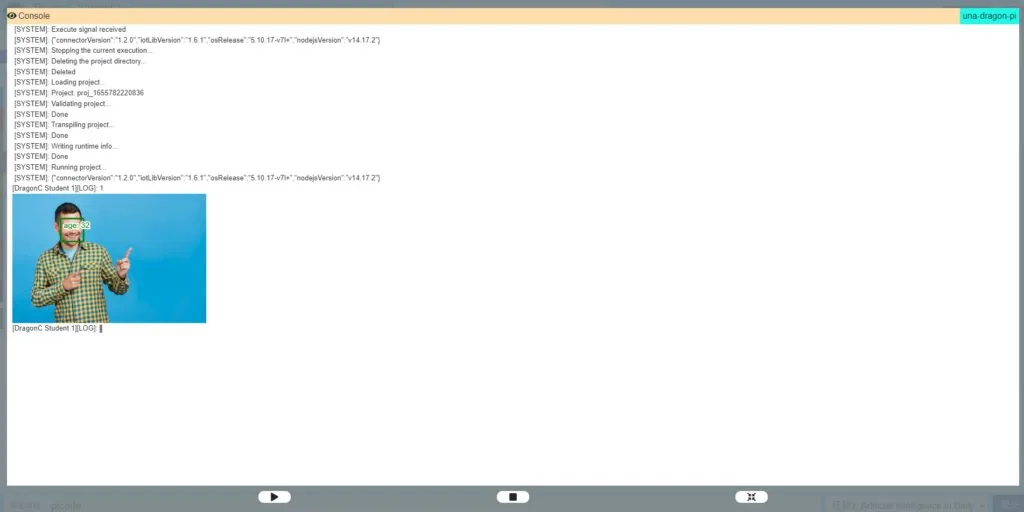

Counting Number of Faces Within a Range of Aged

Face Detection Result count faces aged

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable><variable>faceVerificationResult</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countAge\" disabled=\"true\" x=\"-22\" y=\"337\"><field name=\"operator\">ConditionalOperator.EqualTo</field><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value><value name=\"age\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This block is used for counting the total number of face when it is within the age range.

Parameters:

AI Result (Face Detection from Azure)
Condition:
1. Operator: =(Default)/≠/</≤/>/≥
2. Number (Default: 0)

Output: AI Result
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceDetectionResult_countAge\"><field name=\"operator\">ConditionalOperator.EqualTo</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value><value name=\"age\"><shadow type=\"math_number\"><field name=\"NUM\">32</field></shadow></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

Counting Total Amount of Faces

Face Detection Result count faces

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable><variable>photo1</variable><variable>photo2</variable><variable>faceDetectionResult1</variable><variable>faceDetectionResult2</variable><variable>faceVerificationResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_count\" disabled=\"true\" x=\"-22\" y=\"382\"><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></xml>"}

This is used for counting faces in the image.

Parameters: AI Result (Face Detection from Azure)

Output: AI Result
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://static01.nyt.com/images/2019/10/02/video/02-still-for-america-room-loop/02-still-for-america-room-loop-superJumbo.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceDetectionResult_count\"><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

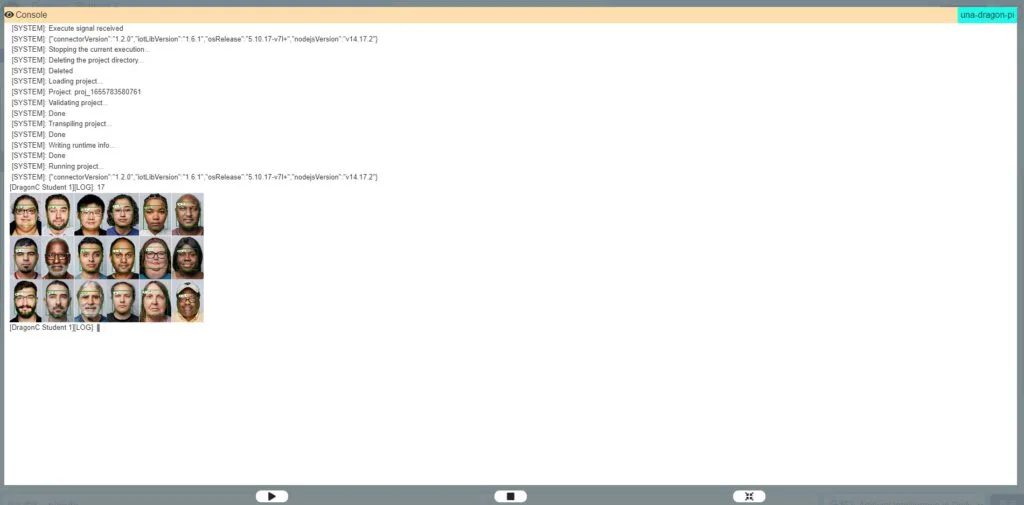

Face Detection Result Count Faces - Output

Putting Face Detection Result Inside Image

Face Detection Result mark face with … on photo

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_markFaces\" disabled=\"true\" x=\"23\" y=\"113\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></xml>"}

This block is used for displaying the boundary box with different attributes inside the image.

Parameters:

AI Result (Face Detection from Azure)
Condition: age (Default)/emotion/gender/glasses type/major hair color/smile

Output: Image
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://www.magicubedu.com/una/AI5/samples/man1.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Age</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></next></block></next></block></statement></block></xml>"}

The output:

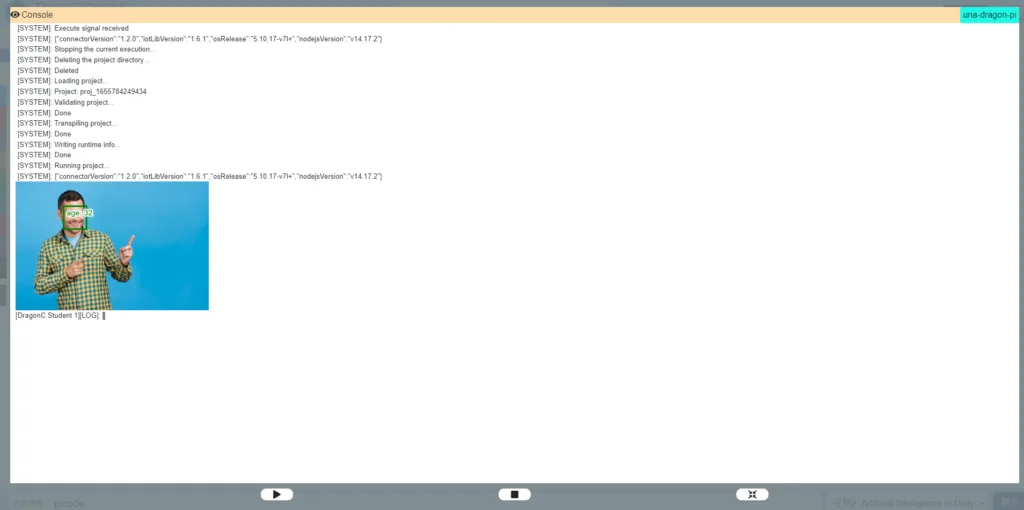

Face Detection Result Mark Face With On Photo - Output

More in UnaAI

Finding People that contain Related Hair Colors

Face Detection Result count faces with hair color in …

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countHairColor\" disabled=\"true\" x=\"67\" y=\"247\"><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value><value name=\"color\"><shadow type=\"text\" disabled=\"true\"><field name=\"TEXT\"/></shadow></value></block></xml>"}

Finding People that are Wearing Glasses

Face Detection Result count faces with glasses

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countGlasses\" disabled=\"true\" x=\"22\" y=\"203\"><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></xml>"}

Face Detection Result count faces of Male

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countGender\" disabled=\"true\" x=\"-22\" y=\"202\"><field name=\"gender\">Gender.M</field><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></xml>"}

This is used for counting how many people is male/female.

Parameters:

AI Result (Face Detection from Azure)
Display setting: Male (Default)/Female

Output: Image
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://pbs.twimg.com/media/CQG1slyWIAASBJX.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Gender</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceDetectionResult_countGender\"><field name=\"gender\">Gender.M</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

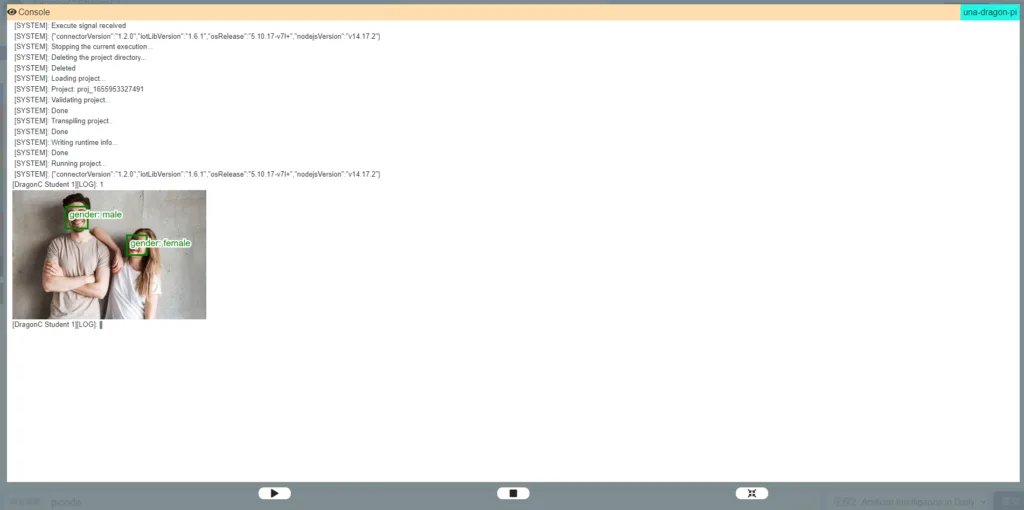

Face Detection Result Count Face of Male - Output

Finding People that are Smiling

Face Detection Result count face with smile

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countSmile\" disabled=\"true\" x=\"-22\" y=\"292\"><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></xml>"}

This is used for counting how many people is smiling.

Parameters: AI Result (Face Detection from Azure)

Output: AI Result
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://s.wsj.net/public/resources/images/BN-IR696_smilep_P_20150601134828.jpg</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Smile</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceDetectionResult_countSmile\"><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

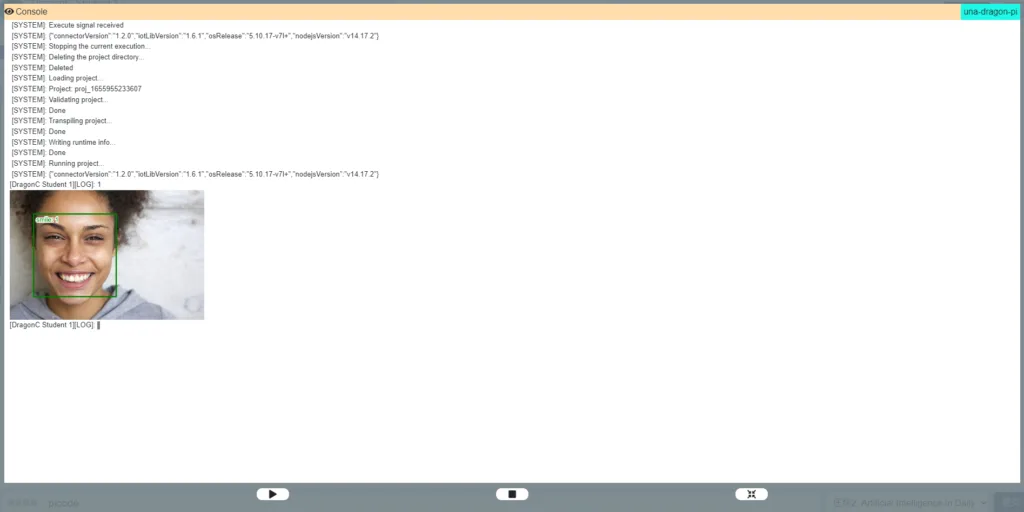

Face Detection Result Count Faces With Smile - Output

Finding People with Specific Emotion and Value

Face Detection Result count face with emotion Anger valued > 0

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"UnaAI_FaceDetectionResult_countEmotion\" disabled=\"true\" x=\"22\" y=\"248\"><field name=\"emotion\">Emotion.Anger</field><value name=\"faceDetectionResult\"><block type=\"variables_get\" disabled=\"true\"><field name=\"VAR\">faceDetectionResult</field></block></value><value name=\"value\"><shadow type=\"math_number\" disabled=\"true\"><field name=\"NUM\">0</field></shadow></value></block></xml>"}

This is used for counting faces when people have different emotions.

Parameters: AI Result (Face Detection from Azure)

Condition:

anger (Default)/contempt/disgust/fear/happiness/ neutral/sadness/surprise
Number (Default: 0)

Output: AI Result
Sample code:

{"blocks":"<xml xmlns=\"https://developers.google.com/blockly/xml\"><variables><variable>photo</variable><variable>faceDetectionResult</variable></variables><block type=\"pxt-on-start\" x=\"0\" y=\"0\"><statement name=\"HANDLER\"><block type=\"variables_set\"><field name=\"VAR\">photo</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"Resources_getPhotoByURL\"><value name=\"url\"><shadow type=\"text\"><field name=\"TEXT\">https://liveboldandbloom.com/wp-content/uploads/2020/04/Untitled-design-14-1.png</field></shadow></value></block></value><next><block type=\"variables_set\"><field name=\"VAR\">faceDetectionResult</field><value name=\"VALUE\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow><block type=\"UnaAI_detectFaces\"><value name=\"img\"><block type=\"variables_get\"><field name=\"VAR\">photo</field></block></value></block></value><next><block type=\"UnaAI_FaceDetectionResult_markFaces\"><field name=\"attribute\">FaceAttribute.Emotion</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value><next><block type=\"basic_consoleLogNum\"><value name=\"num\"><block type=\"UnaAI_FaceDetectionResult_countEmotion\"><field name=\"emotion\">Emotion.Anger</field><value name=\"faceDetectionResult\"><block type=\"variables_get\"><field name=\"VAR\">faceDetectionResult</field></block></value><value name=\"value\"><shadow type=\"math_number\"><field name=\"NUM\">0</field></shadow></value></block></value></block></next></block></next></block></next></block></statement></block></xml>"}

The output:

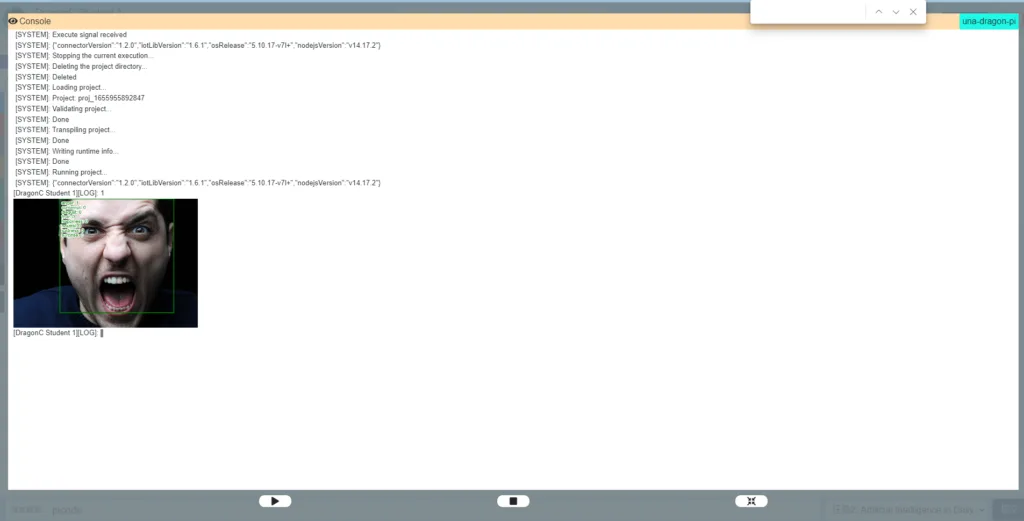

Face Detection Result Count Faces with Emotion Anger Valued - Output
