Hovercraft

IT STEM STEM Day 8 3 hrs Computational Thinking Block Coding

This course introduces practical STEM principles through interactive learning. Participants will engage with technologies such as micro:bit coding and create hovercrafts for real-time remote control competitions. Teams will navigate challenges, avoiding obstacles to cross the finish line swiftly. Emphasize collaboration and strategic thinking while providing a foundation in STEM applications.

Course Enquiry

Learning objectives

  • Understand the principle of the hovercraft and the related coding skills through micro:bit
  • Assemble and improve a hovercraft design that run faster and stabler
  • Use micro:bit to control the hovercraft, pass through obstacles, and complete the race as fast as you can!

Lesson plan

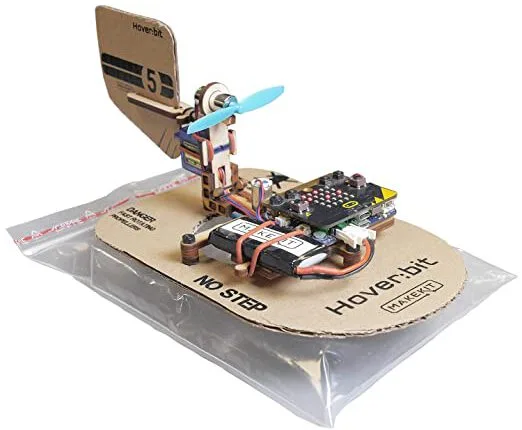

What is Hover:bit? | Introduction video and the two halves of the build - the Controller (remote) and the Raft/Receiver (craft) - plus how it works: a pusher fan drives it forward, a pillow fan blows air downwards and a servo steers the rudder.
The science: friction, the air pillow and choice of materials | Explains friction and how the propeller fills the skirt with air so a thin gap forms under the pillow, letting the craft ride over uneven surfaces without snagging; also justifies the materials used (cardboard and zip bag are cheap and replaceable, hot glue is chosen over superglue because it bonds wood and plastic and can be repositioned before it cools).
Load the code into the micro:bits | Downloads the two prepared programs from a short URL - "Receiver" for the craft and "Controller" for the remote - picking the file numbered for each class and group, then pairs and flashes the micro:bit; walks through the Create Code / Import / Import File and pattern-pairing flow on iPad, while covering the USB computer route and drag-and-drop method.
Assemble the remote controller | Places the micro:bit on the remote holder, fixes it with the two short nylon screws and nuts, and mounts the battery box with the large silicone O-ring (handled gently because the ring breaks easily).
Build the receiver control board | Fits the two white screws and nuts, then the five blue screws with the five silver hollow cylinders onto the ship board, and screws the micro:bit down finger-tight; includes a thinking question on why finger-tight matters (a steady connection).
Make the raft and mount the board | Cuts the cardboard along the dotted-line template, slides the sheet into the zip bag to mark and cut the rectangle and circle, punches four holes and inserts the long black screws, hot-glues the cardboard to the bag, removes the paper and seals the bag, then mounts the control board on two spacer rings per screw and tightens all four bolts.
Fit the servo, motors and tail fin | Mounts the motor holder to the base frame with angle connectors, inserts the servo and routes its cable, secures it with the large O-ring, puts the servo horn on the tail fin holder and fixes it with the small O-ring, presses the tail fin assembly onto the servo head, inserts the wedge and plugs in the vertical motor, servo and horizontal motor leads in the correct colour order.
Fit the propellers and connect the battery | Slides the tail fin into the holder, attaches the CW propeller to Motor 1 and the CCW propeller to Motor 2, secures them with the large O-ring, and connects the battery lead keeping hands away from the fans and ensuring no wire is near the blades.
How to control the hovercraft | Connects the controller wire, then drives it: press buttons A and B together to switch on and again to switch off, rotate the remote to set the tail-fin angle, press B to increase and A to decrease fan speed.

Prerequisites

  • None

Software

  • Una Virtual Classroom - Intermediate / Microsoft MakeCode

Other requirements

    Hardware

    • Hover:bit set x 1
    • Competition component x1
    • Supporting materials, e.g.
      • Hot glue gun with glue stick
      • A4 Paper
      • Cutter and cutting board
      • Safety work gloves
      • Scissors
      • Ballpen or pencil
      • Marker pen
    • Tablet / Notebook / Computer
